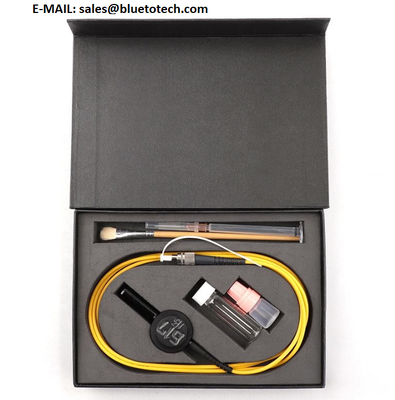

HU125 Bare Fiber Alignment Device HU125 Multipurpose Pigtail HU125 Bare Fiber Connector 1 Second Connecting

HU125 Bare Fiber Alignment Device HU125 Multipurpose Pigtail

Product descriptions:

HU125 Fiber Pigtail is a good tool for the measurement of the characteristic of fibers.
It is applicable to SM or MM fiber and can be connected easily and quickly under any circumstances. Most importantly, its insertion loss is below 0.3dB.
Under the premise of Time is Money, the outstanding features of HU125 can provide a rapid and accurate measurement and research on fibers various optical properties. For example,
the connection of O.T.D.R., Optical Spectrum Analyzers, Light Source, Power Meter and Fiber phone (for communication during the execution of fiber cable engineering), etc.
Application: R&D, Factory, Outdoor engineering, repair and maintenance.

Product pictures:

1. Model: HU125-SM (single-mode optical fiber 9/125 um)
HU125-MM (multi-mode optical fiber 50/125 um or 62.5/125 um)
2. Pigtail length: 150?5cm
3. Insertion Loss: < 0.3 dB
4. Number of insertions: 10,000 min.
5. Reflection Loss: < - 50 dB typ.
6. Alignment Time: < 1 second
7. Matching Oil: Index of refraction(ND) ?1.4500 +/- 0.01
(Alcohol or pure water or distilled water containing at least 30% alcohol can also be used.)
8. Connector types: FC,SC,ST,D4,E2000,LC,DIN
9. Operating Temperature: 14° to 122° F (-10° to +50° C)
10. Storage Temperature: -40° to 140° F (-40° to +60° C)
